Table Saw Blade Will Not Raise or Lower: Elevation Mechanism Checks and Safe Service Steps
When a table saw blade will not raise or lower, do not force the handwheel or continue using the saw at an inconvenient blade height. A blade-height control that binds, slips, or stops moving can point to packed sawdust, a seized elevation gear, a loose handle connection, or a problem deeper in the arbor-and-trunnion assembly.
Safety callout: Switch the saw off, unplug it—or remove the battery on a cordless model—and wait for the blade to stop completely before inspection. If the saw is in a shared shop, use the applicable lockout procedure. Never reach beneath the table or remove guards while the saw can be energized.
The layout differs substantially among portable, contractor, cabinet, and hybrid saws. Some use a front handwheel and worm gear; others use geared trunnions, rack-and-pinion parts, or enclosed mechanisms. Use this article to narrow down the fault, then follow the exact owner’s manual for your model before disassembly, adjustment, or lubrication.
If the saw also fails to run, address that separate issue first with our table saw will not start troubleshooting guide. Do not attempt to “test” a stuck elevation mechanism by powering up the saw.
What the blade elevation mechanism does
The elevation wheel normally transfers your turning force through a shaft and gears to move the blade-and-arbor assembly up or down. Depending on the saw, the moving assembly may be called the trunnion, cradle, carriage, or arbor support.
That means a table saw blade height adjustment stuck complaint may originate at several points:
- The handwheel, crank handle, retaining screw, roll pin, or hub.
- The elevation shaft and its bushings or bearings.
- A worm gear, sector gear, threaded rod, or rack.
- The pivoting or sliding arbor mechanism.
- Sawdust, resin-laden debris, rust, or a misplaced part creating a physical obstruction.
First identify what still moves. Does the wheel turn normally but the blade stays put? Does it move only a small amount? Is it locked solid? Those symptoms help separate a stripped drive connection from a mechanism that is actually jammed.
Table saw blade will not raise or lower: start with these safe checks
- Make the saw incapable of starting. Unplug a corded saw and keep the plug under your control. Remove a battery from a cordless saw. Confirm that the switch is off, wait for all movement to stop, and clear the tabletop.
- Note the blade position and wheel behavior. Check whether the blade is fully lowered, fully raised, or stopped mid-travel. Turn the wheel gently in each direction; do not use pliers, a cheater bar, or impact force.
- Check the bevel lock and elevation control. On saws with a separate bevel lock, verify that it is released only as the manual directs. A lock that is overtightened or a bevel mechanism that is binding can add load to the elevation system.
- Look for visible obstruction. Remove loose offcuts and surface debris. With the throat plate removed only if your manual permits it, inspect for a fallen screw, chip, broken insert piece, or packed debris near accessible moving parts.

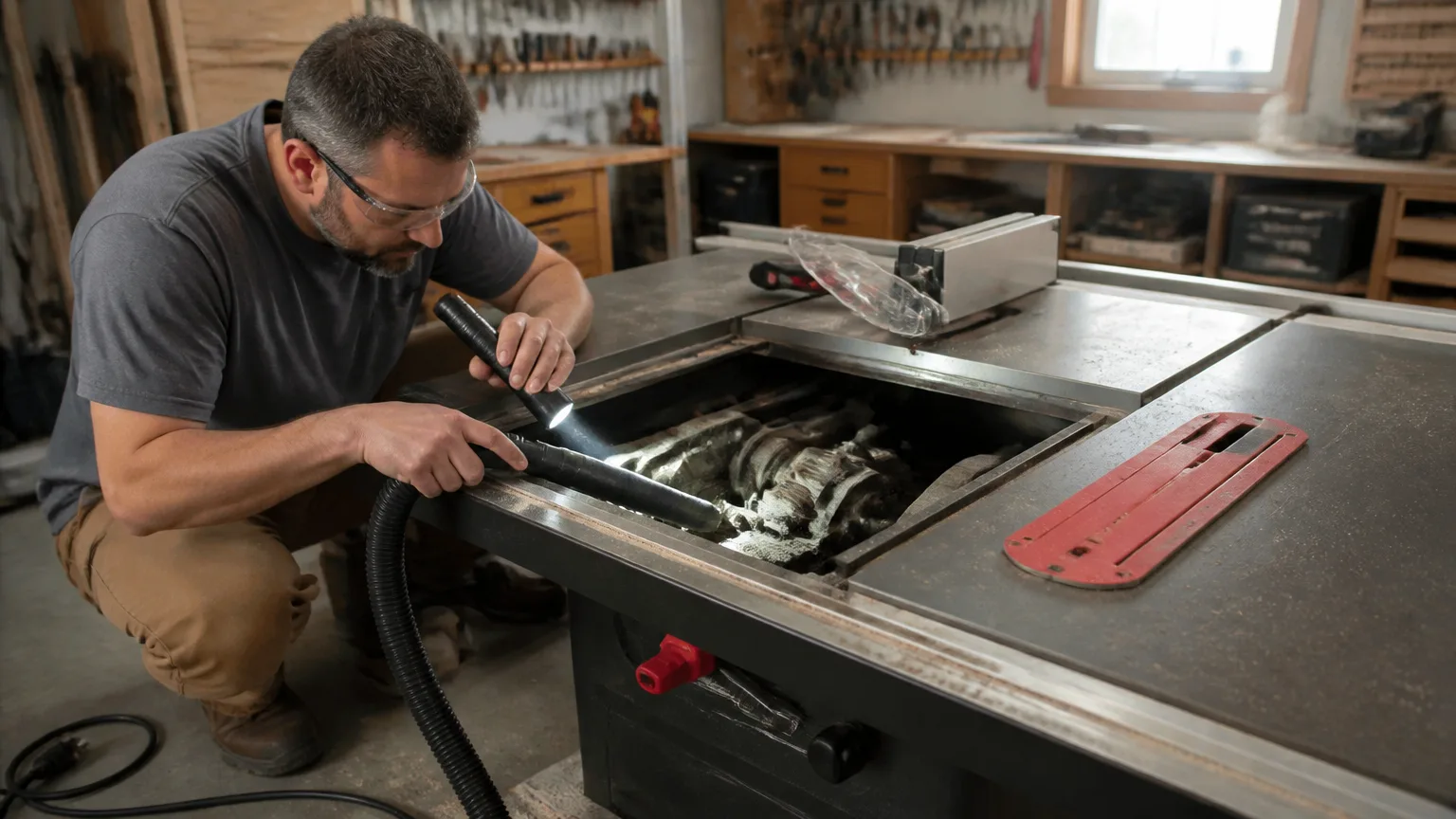

- Inspect from below without disturbing wiring or guards. Use a flashlight. Look for dense sawdust accumulation, obvious corrosion, damaged teeth on exposed gears, a disconnected linkage, or a foreign object against the moving assembly.
- Stop when access requires major teardown. If diagnosis requires removing the motor, separating trunnions, changing belt tension, or working close to electrical components, consult the model-specific manual or an authorized service professional.
Common causes of a table saw elevation wheel seized
Compacted sawdust and debris
Fine dust does more than make a mess. In damp conditions, it can combine with humidity, old lubricant, and wood resin into a dense paste. That buildup may collect around gear teeth, threaded components, pivots, and the lower blade shroud. A saw stored on a concrete floor or used heavily without periodic cleaning is especially likely to develop this kind of drag.
Vacuum accessible debris using a shop vacuum and a nonmetallic brush. Keep the nozzle and hands clear of the blade and mechanism. Avoid blasting debris deeper into bearings, switches, or the motor with uncontrolled compressed air. Also avoid spraying flammable solvents or lubricants into an enclosed saw cabinet, especially near electrical parts.
Dry or corroded gears and pivots
Rust on a gear, shaft, pivot, or sliding way can make the handwheel progressively harder to turn until it locks. A dry mechanism may feel rough or make a gritty clicking sound. Corrosion can be a sign that the saw has been stored in a damp garage, shed, or unconditioned shop.
Cleaning and lubrication can be appropriate, but the correct lubricant and application points are model-specific. Some mechanisms use grease at certain gears, while other surfaces need a dry lubricant or should not be lubricated at all. Follow the owner’s manual or manufacturer service guidance rather than applying a general-purpose product everywhere.
A loose wheel, handle, pin, or hub
If the wheel turns freely with little resistance but the blade does not move, inspect the accessible connection between the wheel and its shaft. A loose retaining fastener, missing roll pin, worn hub, or stripped interface can allow the control to rotate without transferring motion to the elevation drive.
Do not substitute an oversized screw, wedge material into the hub, or improvise a pin. Those shortcuts can damage the shaft and may leave the blade height unstable. Obtain the correct replacement hardware or service part for the saw.
Gear damage or a stripped drive
A sudden pop followed by free-spinning, skipping, or repeated clicking can indicate damaged gear teeth. On some saws, the wheel may move the blade in one direction but skip under load in the other. Visible broken teeth, cracked plastic gears, or metal shavings are good reasons to stop rather than force the mechanism.
A worn elevation gear is usually a parts-and-service repair, not a cleaning problem. Continued use can damage mating components and make alignment recovery more difficult.
A binding arbor mechanism or trunnion assembly
A table saw arbor mechanism jammed condition often feels different from a loose wheel: the handwheel resists movement firmly, and the blade may stop at the same point on every attempt. Misaligned components, bent parts after a drop, overtightened fasteners from a prior repair, or internal corrosion can all bind the moving assembly.
This is where caution matters most. The elevation mechanism affects blade position and can interact with bevel adjustment, blade-to-insert clearance, and riving-knife alignment. If the cause is not plainly accessible debris, professional service is a sensible next step.
A practical diagnostic order before service
Use this sequence to avoid taking apart more than necessary.
- Confirm the symptom. Determine whether the wheel is seized, rough, slipping, or simply limited by an obstruction.
- Clean what you can see safely. Vacuum the cabinet, lower shroud area, and accessible elevation components.
- Check controls and external connections. Inspect the wheel, handle, visible hardware, and bevel-lock position according to the manual.
- Inspect exposed drive parts. Look for broken, disconnected, or badly corroded gears and linkages.
- Follow model-specific maintenance instructions. Use only the lubricant, adjustment method, and access steps specified for your saw.
- Escalate if the moving assembly binds. Stop if repair involves the arbor carriage, trunnions, motor mount, wiring, or a return-to-service alignment check you cannot complete confidently.
What not to do when the blade adjustment problem is stuck
A stuck control can be frustrating, but added force is often what turns a manageable repair into broken gears or a bent shaft. Avoid these responses:
- Do not strike the handwheel with a hammer or use pipe extensions for leverage.
- Do not run the saw with the guard, throat plate, blade insert, or other safety parts missing.
- Do not loosen random underside bolts in an attempt to free the mechanism; some fasteners affect alignment.
- Do not spray penetrating chemicals into a running saw, onto a hot motor, or near switches and wiring.
- Do not force the blade by pulling it upward from above the table.
- Do not operate the saw if the blade height drifts, the wheel slips, or the mechanism remains rough after cleaning.
After the mechanism moves again
Restoring motion is not the same as confirming that the saw is ready to cut. With power still disconnected, turn the elevation control through its available travel gently and watch for binding, gear skipping, abnormal noise, or blade contact with the throat plate or insert. Reinstall every guard, access cover, and fastener before restoring power.
Then use the exact manual’s checks for blade height, bevel operation, blade guard, riving knife or splitter, and fence setup. If any safety device no longer fits or aligns correctly, do not use the saw until the underlying issue is corrected. For a related reminder on guarding around saw blades, see our guide to a circular saw blade guard that will not retract safely.
When to call for professional table saw service
Arrange qualified service when the table saw blade will not raise or lower after basic cleaning, when gear teeth are damaged, when the arbor mechanism is visibly bent or corroded, or when the repair calls for trunnion alignment or electrical disassembly. The same applies if the saw was dropped, flooded, or involved in a kickback that may have stressed internal parts.
A dependable elevation system should move smoothly, hold its selected height, and leave all guards and blade-clearance components correctly positioned. If it does not, keep the saw out of service until it can be repaired and checked against the manufacturer’s instructions.
